12410 Series

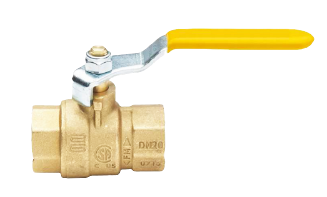

Forged Brass Ball Valve Female NPT with Yellow Steel Lever
Features:
Sandblasted Brass Body with Steel Lever
Sizes: 1/4" - 4"
Certifications: UL | FM | CSA
Connection: NPT x NPT
Pressure:
900 PSI (1/4" - 3/8")
600 PSI (1/2" - 1")
350 PSI (1-1/4" - 4")
ANSI Standard B1.20.1
CSA 9.1:21 from 1/4" to 2"
Temperature: -4° F to 266° F
Application: Hot and Cold Water, Compressed Air, Oils, All Kinds of Gases, Non-aggressive Fluids
Item | Size | Connection Type | Inner Case Qty | Master Case Qty | MC Weight lbs |
12410-002 | 1/4" | Female x Female NPT | 20 | 100 | 30.53402 |
12410-003 | 3/8" | Female x Female NPT | 20 | 100 | 30.64425 |
12410-005 | 1/2" | Female x Female NPT | 20 | 80 | 35.40624 |
12410-007 | 3/4" | Female x Female NPT | 12 | 48 | 33.22366 |
12410-010 | 1" | Female x Female NPT | 8 | 32 | 34.56848 |
12410-012 | 1-1/4" | Female x Female NPT | 4 | 20 | 36.8172 |
12410-015 | 1-1/2" | Female x Female NPT | 4 | 8 | 22.39897 |
12410-020 | 2" | Female x Female NPT | 2 | 8 | 33.33389 |
12410-025 | 2-1/2" | Female x Female NPT | 1 | 4 | 29.91673 |
12410-030 | 3" | Female x Female NPT | 1 | 3 | 36.92743 |
12410-040 | 4" | Female x Female NPT | 1 | 1 | 29 |
 |
|---|
 |
 |
 |
 |
 |
 |
 |
 |
